Engineered light.
Built to last.
A backlit LED flat panel with adjustable wattage and color temperature. UL-listed, DLC-qualified, and rated for 50,000 hours of dependable commercial-grade illumination.
- Lumens
- 6,100
- lm @ 50W
- Efficacy
- 127
- lm/W peak
- Lifespan
- 50K
- hours rated
- CRI
- >80
- color rendering
Designed for spec writers.
Every detail of the MFP01 — from driver quality to optical uniformity — is tuned for commercial environments where lighting is a tool, not a decoration.
Field-selectable CCT
Switch between 3500K, 4000K, and 5000K on-site without changing the fixture.
Three wattage levels
Each fixture toggles between three power presets — tune output to the space.
Backlit optics
New backlit light engine delivers uniform surface brightness with no hotspots.
Flicker < 5%
Driver maintains PF > 0.9 and THD < 20% for clean, eye-friendly light.
0–10V dimming
Optional dimming from 10% to 100% for daylight harvesting and zoning.
Sensor-ready
PIR, microwave, daylight, and Bluetooth controls available as factory options.
Three sizes. Six output presets.
One product family covers most ceiling grids and lumen targets — without stocking a separate SKU for every wattage.
- Dimensions
- 603 × 603 × 36 mm
- Weight
- 4.1 lb
- Dimensions
- 303 × 1213 × 36 mm
- Weight
- 4.3 lb
- Dimensions
- 603 × 1213 × 36 mm
- Weight
- 8.1 lb
40W Model
120–277V · CRI > 80| Switch | Wattage | Lumens | Efficacy |
|---|---|---|---|
| LV1 | 40W | 4,700 lm | 118 lm/W |
| LV2 | 30W | 3,600 lm | 120 lm/W |
| LV3 | 20W | 2,500 lm | 125 lm/W |
50W Model
120–277V · CRI > 80| Switch | Wattage | Lumens | Efficacy |
|---|---|---|---|
| LV1 | 50W | 6,100 lm | 122 lm/W |
| LV2 | 40W | 4,900 lm | 123 lm/W |
| LV3 | 30W | 3,800 lm | 127 lm/W |
The full datasheet.
Specifications taken from the MFP01 product datasheet. All values measured under laboratory conditions at 25 °C ± 5 °C.
Download PDF datasheetConstruction
- Frame
- Die-cast aluminum, one-piece shell
- Mounting
- Surface · Recessed · Suspended
- Ceiling
- Standard T-bar grid compatible
- Net weight
- 1×4: 4.3 lb · 2×2: 4.1 lb · 2×4: 8.1 lb
Electrical
- Input voltage
- 120–277 VAC, universal
- Power factor
- > 0.9
- THD
- < 20%
- Flicker
- < 5%
- Dimming
- 0–10V, 10–100% (optional)
Optical
- CRI
- > 80
- Beam angle
- 120°
- CCT (selectable)
- 3500K / 4000K / 5000K
- Lumen range
- 2,200 – 6,000 lm
Environment & Compliance
- Operating temp
- −17 °C to 45 °C
- Lifespan
- 50,000 hours (LM-80 / TM-21)
- Certifications
- UL · cUL Damp Location · DLC
- Warranty
- 5-year limited

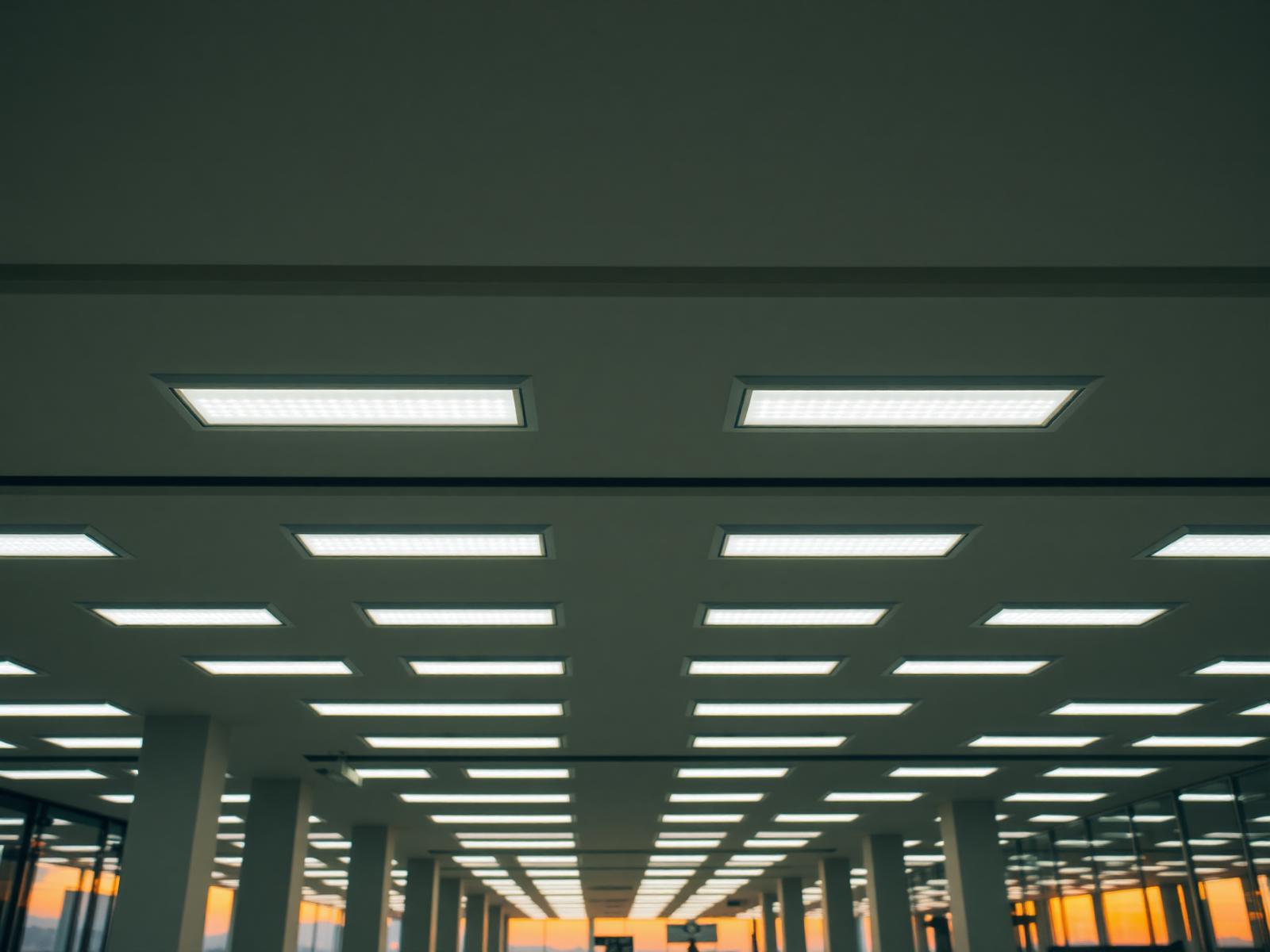

From single rooms to entire floors.
The MFP01 is a workhorse — a single fixture family that scales across commercial, retail, and institutional projects of any size.
- Offices
- Schools & classrooms
- Hospitals & clinics
- Retail floors
- Conference rooms
- Government buildings
Spec the MFP01 into your next project.
Tell us about your application and we'll send the full datasheet, IES files, and a quote tailored to your quantity and configuration.
